AVAILABLE SUPER SINGLE DRILLING RIGS " offers welcome "

FOR MORE INFORMATION PROVIDE FULL CORPORATION NAME / ADDRESS AND CONTACT INFORMATION . OILFIELD REPRESTATIVE WILL CONTACT YOU ASAP

AVAILABLE :

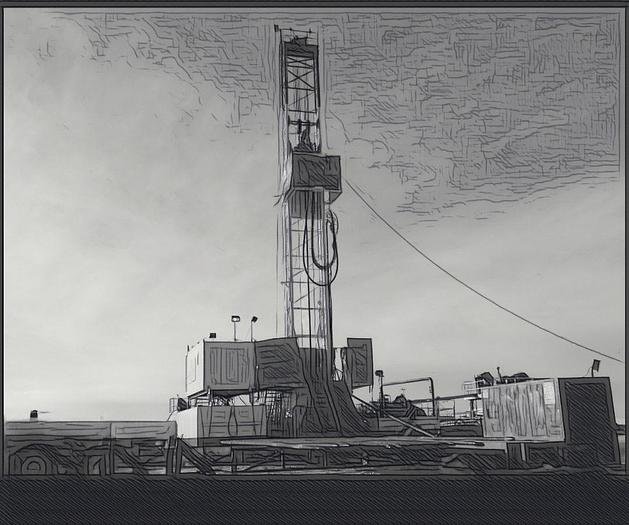

SUPER SINGLE

(2800m) stiff mast RNG III singles with wheeled carriers

(2400m) stiff mast RNG III singles with skidded step-down substructure

Rigs come fully equipped

All 4 rigs are built by NTI and are trailer mounted stiff mast 2400 meter, 100,000 daN static hook load rigs with a setback capacity of 44,500 daN and rotary capacity of 53,400 daN.

They are equipped with a NTI R-300 drawworks with a 100,000 daN capacity powered by a Detroit 60 series engine.

A TESCO HXI 150 ton integrated top drive with a torque rating of 24,000 ft lbs @ 65 rpm.

2-F1000, 1000 horse power mud pumps with 8” stroke powered by Detroit 60 series engines.

Power generation is a Detroit 60 series 350 kw – 480v / 400 amp generator.

1. 60m3 (400 bbl) mud tank with a 4 m3 trip tank,
2. Brandt King Cobra shale shakers

762 mm (2.14 meter) degasser

2 Mission Magnum centrifuge 6”x5”x11” pumps

A Hi Calibre 308 liter 3000 psi 4 station Accumulator c/w nitrogen back-up system

A Townsend 9” 3000 psi B.O.P stack ( 1 Annular and 2 single gates)

Blocks are NTI split 150 ton 133,440 daN

Rotary table is 444.4mm (17 ½”) with a 53,400daN rating

All rigs come with a 11,000 liter fuel tank, 40 m3 water tank.

Catwalk has a hydraulic skate.

2 pipe tubs with 2,400 meters of Range lll, 4” drill pipe and 4 ¾” collars.

- all units were racked with the intent to go to work , for an extra fee they can be checked and prepared for site

2 rigs had 400000 plus work done each . And never went to work

2 have not been touched

- transport can be organized for an extra charge . Looking at 11/12 loads and can be organized to drop point

MORE DETAILED INFORMATION PROVIDED ON NDA SIGNING
