2014 WESTMOR "proliner " MC-331 TANDEM LP/NH3 Transport 265 P.S.I.G.

2014 WESTMOR INDUSTRIES MC-331 TRANSPORT TANDEM TRAILER , 265 P.S.I.G.

10600 US WATER GALLONS 84" LP/NH3 TRANSPORT VESSEL BUILT WITH SA-517 QENCHED AND TEMPERED STEEL VESSEL BUILT IN ACCORDANCE WITH ASME CODE SECTION V111, DIVISION I AND DOT SPECIFICATION MC-331

265 PSIG WORKING PRESSURE

-30deg -150deg Fahrenheit

refined LPG/NH3

two sets of aluminum baffles

front and rear sub - frames constructed of 1/4 steel

2 intraxx air ride with intergated axles 77-1/2" trac width , Dana-light drums and hubs , automatic slack adjusters , Intraax 40681C

Haldex Braking System ( 2 Sensor / 1 module )

2, 8"x21 Aluminum Hose Tubes , one tube mounted on each side , One per Tube

Holland Mark V2 Speed , Crank Located Drivers side

Bolted adjustable king pin plate , 2.5 increments

Dot approved Betts LED lights

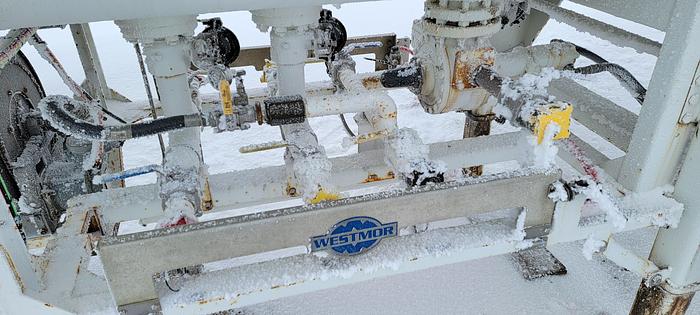

Vessel Openings located Rear of landing gear protected by 4" steel channel frame . All threaded piping is schedule 80 pipe , opening including pump flange , vapor / spray fill, liquid

M.E. 4" flanged internal valve 4" blackmer pump , set for PTO shaft , rotation is clock wise from the rear of the unit ( bypass is on the street side of the transport ) PTO shaft is supplied by the customer

pump liquid terminates to both sides with 2" full port stainless steel ball valves with 3-1/4 steel ACME fitting , caps and cables

3" M.E. internal valve at 3" flanged liquid opening , Terminates to both sides with 2" full port stainless steel ball valves, 3-1/4 steel ACME fittings caps and cables

M.E 3" internal valve at 3" flanged vapor/spray -fill opening , terminates both sides with 2" full port stainless steel ball valves 3-1/4 steel ACME fitting , cap and cables

2-M.E. 3" 265 P.S.I relief valves located on top of the vessel

blow downs fitted with 1/2 steel ball valves routed to manifold stainless steel tubing to top . Self -closing blow down valves , manual closing blow down valves

air operated internal valves with controls located in the cage and piping area

air operators at the left front and right rear to transport

M.E visual percentage guage, 4) fixed outage gauges set at 82% 85% 86.5% and 90% 0-400# liquid filled pressure gauge and thermometer all installed in the recess wells curbside

change order was done at the time of purchase

add hydralics

add lp smart hose

change to brass fittings

CVIP 2022/12/08

CSA B620-20 - DONE JUNE 9/2021
